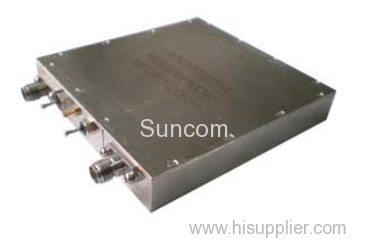

Double Channel Detector Log Video Amplifiers
| Place of Origin: | Liaoning, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Successive Detector Log Video Amplfiers
| Part Number | Frequency Range (GHz) | TSS (dBm. Typ) | Flatness (±dB) | MaxDynamic Range (dBm) | Log Linearity (±dB Max) | VSWR | MaxCurrent @+/-12VDC (mA) | Case Type |
| MDL001200D58 | 0.1-20 | -58 | 1.5 | -55~+5 | 1 | 2.5(Typ.) | 120 | DL11 |
| MDL005020D72 | 0.5-2 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL005060D72 | 0.5-6 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL005180D68 | 0.5-18 | -68 | 3 | -65~+5 | 1.5(typ) | 3.5 | 350/60 | DL10 |
| MDL010020D72 | 1-2 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL010080D72 | 1-8 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL010180D68 | 1-18 | -70 | 2.5 | -70~+5 | 1 | 2.5 | 250/130 | DL2 |
| MDL020040D72 | 2-4 | -72 | 2 | -70~+2 | 1 | 2.2 | 460/150 | DL9 |
| MDL020060D72 | 2-6 | -72 | 2 | -70~+5 | 1 | 2.2 | 460/150 | DL9 |
| MDL020180D68 | 2-18 | -70 | 2.5 | -70~+5 | 1 | 2.5 | 250/130 | DL10 |
| MDL020100D72 | 2-10 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL040080D72 | 4-8 | -72 | 2 | -70~+5 | 1 | 2.2 | 460/150 | DL9 |
| MDL040100D72 | 4-10 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL060120D72 | 6-12 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL060180D72 | 6-18 | -72 | 2 | -70~+5 | 1 | 2.2 | 250/130 | DL2 |
| MDL080120D72 | 8-12 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL080140D72 | 8-14 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL080180D72 | 8-18 | -72 | 2 | -70~+2 | 1 | 2.2 | 420/160 | DL10 |
| MDL120180D72 | 12-18 | -72 | 2 | -70~+5 | 1 | 2 | 250/130 | DL2 |
| MDL180265D62 | 18-26.5 | -65 | 3 | -60~+2 | 1.5 | 2.2 | 350/150 | DL7 |
Other specification:
Rise time..................................................................................27ns(type)
Delay Time...............................................................................30ns(max)
Log Slope....................................................................................50mV/dB
Recovery time..................................................................... ..500ns(type)
Baseline Noise....................................................................200mV(type)
DC Floating..........................................................................150mV(max)
