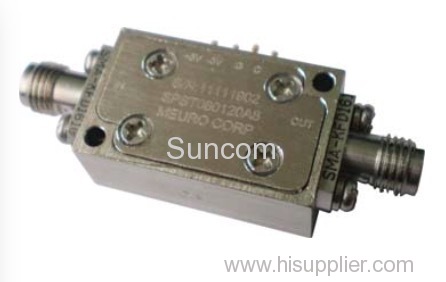

Small Signal PIN Switch SPST to SP12T
| Place of Origin: | Liaoning, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
switch
| Part Number | Frequency Range(GHz) | Insertion loss (dB MAX ) | Isolation (min.dB) | VSWR (Max.) | Input Power (Max) | Switching Time(ns) | Current@+/-5V VDC (mA) | Typ.Work Style | Case Type |
| SPST | |||||||||
| SPST020001A8 | 0.01-2 | 1.5 | 80 | 1.6 | 1 | 50 | 30/20 | Absorptive | SW1 |
| SPST001005A8 | 0.1-0.5 | 1.3 | 80 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST001005A6 | 0.1-0.5 | 1 | 60 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST005020A8 | 0.5-2 | 1.2 | 80 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST005020A6 | 0.5-2 | 1 | 60 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST005180A8 | 0.5-18 | 2.9 | 80 | 2.2 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST005180A6 | 0.5-18 | 2.5 | 60 | 2.2 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST010400A6 | 1-40 | 6(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST010400A7 | 1-40 | 7(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST010400A8 | 1-40 | 8(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST020040A8 | 2-4 | 1.2 | 80 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST020040A6 | 2-4 | 1 | 60 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST020180A8 | 2-18 | 2.9 | 80 | 2 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST020180A6 | 2-18 | 2.5 | 60 | 2 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST040080A8 | 4-8 | 1.5 | 80 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST040080A6 | 4-8 | 1.1 | 60 | 1.5 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST080120A8 | 8-12 | 2.2 | 80 | 1.7 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST080120A6 | 8-12 | 1.9 | 60 | 1.7 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST090100A3 | 9-10 | 1.2 | 30 | / | 0.2 | 100 | 30/20 | Absorptive | SW1 |
| SPST120180A8 | 12-18 | 2.5 | 80 | 1.7 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST120180A6 | 12-18 | 2.1 | 60 | 1.7 | 0.2 | 50 | 30/20 | Absorptive | SW1 |
| SPST179400A7 | 17.9-40 | 5.5 | 70 | 2.3 | / | 100 | 30/20 | Absorptive | SW7 |
| SPST180260A6 | 18-26 | 4(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180260A7 | 18-26 | 4.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180260A8 | 18-26 | 5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180400A6 | 18-40 | 5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180400A7 | 18-40 | 5.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180400A8 | 18-40 | 6(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST180400C7 | 18-40 | 5.5 | 70 | 2.3 | 0.1 | 100 | 30/20 | Absorptive | SW13 |
| SPST260400A6 | 26-40 | 5.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST260400A7 | 26-40 | 6(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST260400A8 | 26-40 | 7(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 30/20 | Absorptive | SW14 |
| SPST340360A7 | 34-36 | 3.5 | 70 | 2 | 250mW | 50 | 30/20 | Absorptive | SW1 |
| SPST340360A8 | 34-36 | 4.5 | 75 | 2 | 250mW | 50 | 30/20 | Absorptive | SW1 |
| SPST001020R3 | 0.01-2 | 1.5 | 30 | 1.4 | 20dBm | 30/20 | Reflective | SW8 | |
| SPST001005R8 | 0.1-0.5 | 0.8 | 60 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST001005R6 | 0.1-0.5 | 0.6 | 80 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST005020R8 | 0.5-2 | 0.9 | 80 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST005020R6 | 0.5-2 | 0.5 | 60 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST005180R8 | 0.5-18 | 2.5 | 80 | 2.2 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST005180R6 | 0.5-18 | 2.1 | 60 | 2.2 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST020040R8 | 2-4 | 0.8 | 80 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST020040R6 | 2-4 | 0.6 | 60 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST020180R8 | 2-18 | 2.5 | 80 | 2 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST020180R6 | 2-18 | 2.1 | 60 | 2 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST040080R8 | 4-8 | 1.1 | 80 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST040080R6 | 4-8 | 0.8 | 60 | 1.5 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST080120R8 | 8-12 | 1.5 | 80 | 1.7 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST080120R6 | 8-12 | 1.1 | 60 | 1.7 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST080180R6 | 8-18 | 2(TYP) | 65 | 2 | 1 | 200 | 30/30 | Reflective | SW12 |
| SPST090100R3 | 9-10 | 0.8 | 30 | / | 2 | 100 | 30/20 | Reflective | SW1 |
| SPST120180R8 | 12-18 | 2.1 | 80 | 1.7 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST120180R6 | 12-18 | 1.6 | 60 | 1.7 | 1 | 50 | 30/20 | Reflective | SW1/ |
| SPST120180R6C | 12-18 | 1.6 | 60 | 1.7 | 1 | 50 | 30/20 | Reflective | SW1 |
| SPST179400R7 | 17.9-40 | 4.8 | 70 | 2.3 | / | 100 | 30/20 | Reflective | SW7 |
| SPDT | |||||||||
| SPDT02001A8 | 0.01-2 | 1.5 | 80 | 1.6 | 1 | 50 | 60/40 | Absorptive | DW2 |
| SPDT002020A5 | 0.02-2 | 1.5 | 50 | 1.4 | 17dBm | 3us | +5V/50mA | Absorptive | DW27 |
| SPDT060003A7 | 0.03-6 | 2.2 | 70 | 1.7 | 27dBm | 150 | 60/40 | Absorptive | DW13 |
| SPDT005005A7 | 0.05-0.5 | 1.4 | 70 | 1.7 | 27dBm | 150 | 60/40 | Absorptive | DW13 |
| SPDT001003A8 | 0.1-0.3 | 2.5 | 80 | 1.5 | 250mW | 50 | 60/40 | Absorptive | DW14 |
| SPDT001005A8 | 0.1-0.5 | 1.6 | 80 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT001005A6 | 0.1-0.5 | 1.1 | 60 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT004060A6C | 0.4-6 | 1.9 | 65 | 1.7 | 27dBm | 50 | 60/40 | Absorptive | DW2 |
| SPDT004060A8C | 0.4-6 | 2 | 80 | 1.7 | 27dBm | 50 | 60/40 | Absorptive | DW13 |
| SPDT004180A6C | 0.4-18 | 3.3 | 60 | 2.2 | 27dBm | 50 | 60/40 | Absorptive | DW2 |
| SPDT004180A8C | 0.4-18 | 3.3 | 80 | 2.2 | 27dBm | 50 | 60/40 | Absorptive | DW13 |
| SPDT005020A8 | 0.5-2 | 1.7 | 80 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT005020A6 | 0.5-2 | 1.3 | 60 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT005180A8 | 0.5-18 | 3.1 | 80 | 2.2 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT005180A6 | 0.5-18 | 2.9 | 60 | 2.2 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT010400A6 | 1-40 | 8.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT010400A7-B | 1-40 | 10(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT010400A7 | 1-40 | 8.2 | 75 | 2.6 | 0.2 | 50 | 60/40 | Absorptive | DW23 |
| SPDT010400A7-M | 1-40 | 8.5(TYP) | 75 | 2.6 | 0.5 | 50 | 60/40 | Absorptive | DW22 |
| SPDT010400A8 | 1-40 | 11.8(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT018060A8 | 1.8-6 | 1.7 | 80 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW2 |
| SPDT020040A8 | 2-4 | 1.7 | 80 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT020040A6 | 2-4 | 1.4 | 60 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT020180A8 | 2-18 | 3.1 | 80 | 2 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT020180A6 | 2-18 | 2.9 | 60 | 2 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT040080A8 | 4-8 | 1.9 | 80 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT040080A6 | 4-8 | 1.6 | 60 | 1.5 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT080120A8 | 8-12 | 2.3 | 80 | 1.7 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT080120A6 | 8-12 | 1.9 | 60 | 1.7 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT090100A3 | 9-10 | 0.5 | 30 | / | 2 | 100 | 30/20 | Absorptive | DW1/DW2 |
| SPDT100200A8 | 10-20 | 3.1 | 80 | 2 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT120180A8 | 12-18 | 2.7 | 80 | 1.7 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT120180A6 | 12-18 | 2.4 | 60 | 1.7 | 0.2 | 50 | 60/40 | Absorptive | DW1/DW2 |
| SPDT179400A6 | 17.9-40 | 5.8 | 60 | 2.3 | / | 100 | 60/40 | Absorptive | DW11 |
| SPDT180260A6 | 18-26 | 5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT180260A7 | 18-26 | 6(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT180260A8 | 18-26 | 8(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT180400A6 | 18-40 | 4 | 65 | 2.3 | 20dBm | 100 | 60/40 | Absorptive | DW15 |
| SPDT180400C6 | 18-40 | 5.5 | 65 | 2.3 | 0.1 | 100 | 60/40 | Absorptive | DW25 |
| SDT180400A6-B | 18-40 | 7.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SDT180400A7 | 18-40 | 8.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SDT180400A8 | 18-40 | 9(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT200300A7 | 20-30 | 5.2 | 70 | 2.2 | 0.2 | / | 60/40 | Absorptive | DW21 |
| SPDT260400A6 | 26-40 | 6.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT260400A7 | 26-40 | 8(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT260400A8 | 26-40 | 9(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 60/40 | Absorptive | DW31 |
| SPDT300400A7 | 30-40 | 5.8 | 70 | 2.2 | 0.2 | / | 60/40 | Absorptive | DW21 |
| SPDT001020R3 | 0.01-2 | 1.8 | 30 | 1.5 | 20dBm | 200 | 60/40 | Reflective | DW15 |
| SPDT001005R8 | 0.1-0.5 | 1.2 | 80 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT001005R6 | 0.1-0.5 | 0.7 | 60 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT005020R8 | 0.5-2 | 1.3 | 80 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT012013R5 | 1.215-1.35 | 0.9 | 50 | 1.4 | 0.04 | 100 | 30/50 | Reflective | DW1 |
| SPDT005020R6 | 0.5-2 | 0.9 | 60 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT005180R8 | 0.5-18 | 2.7 | 80 | 2.2 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT005180R6 | 0.5-18 | 2.5 | 60 | 2.2 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT005400R7 | 0.5-40 | 4.9 | 75 | 2.2 | 0.5 | 50 | 60/40 | Reflective | DW21 |
| SPDT020040R8 | 2-4 | 1.3 | 80 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT020040R6 | 2-4 | 1 | 60 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT027029R2 | 2.7-2.9 | 0.6 | 20 | 1.3 | 1 | 100 | 60/40 | Reflective | DW1 |
| SPDT020180R8 | 2-18 | 2.7 | 80 | 2 | 0.5 | 50 | 60/40 | Reflective | DW2 |
| SPDT020180R6 | 2-18 | 2.5 | 60 | 2 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT020180C6 | 2-18 | 3.8 | 60 | 02:01 | 26dBm | 100 | 120/100 | Reflective | DW2 |
| SPDT040080R8 | 4-8 | 1.5 | 80 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT040080R6 | 4-8 | 1.2 | 60 | 1.5 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT060180R3 | 6-18 | 2.8 | 28 | 2 | 7 | 50 | 60/40 | Reflective | DW2 |
| SPDT080120R8 | 8-12 | 1.9 | 80 | 1.6 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT080120R6 | 8-12 | 1.5 | 60 | 1.6 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT120180R8 | 12-18 | 2.3 | 80 | 1.7 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT120180R6 | 12-18 | 1.8 | 60 | 1.7 | 0.5 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT120180R6C | 12-18 | 1.8 | 60 | 1.7 | 0.5 | 50 | 60/40 | Reflective | DW1 |
| SPDT179400R6 | 17.9-40 | 5.1 | 60 | 2.3 | / | 100 | 30/20 | Reflective | DW11 |
| SPDT190210R6 | 19-21 | 0.6 | 60 | 1.5 | 0.2 | 50 | 60/40 | Reflective | DW1/DW2 |
| SPDT200305R3 | 20-30.5 | 3 | 30 | / | 2 | 100 | 30/20 | Reflective | DW1/DW2 |
| SP3T | |||||||||
| SP3T020001A8 | 0.01-2 | 1.5 | 80 | 1.6 | 1 | 50 | 90/60 | Absorptive | 3W1 |
| SP3T001005A8 | 0.1-0.5 | 1.4 | 80 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T001005A6 | 0.1-0.5 | 1.2 | 60 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T005020A8 | 0.5-2 | 1.7 | 80 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T005020A6 | 0.5-2 | 1.5 | 60 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T005180A8 | 0.5-18 | 3.3 | 80 | 2 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T005180A6 | 0.5-18 | 3.1 | 60 | 2 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T010400A6 | 1-40 | 9(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T010400A7 | 1-40 | 10.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T010400A8 | 1-40 | 12(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T020040A8 | 2-4 | 1.9 | 80 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T020040A6 | 2-4 | 1.7 | 60 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T020180A8 | 2-18 | 3.3 | 80 | 2 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T020180A6 | 2-18 | 3.1 | 60 | 2 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T040080A8 | 4-8 | 2.3 | 80 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T040080A6 | 4-8 | 1.9 | 60 | 1.5 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T080120A8 | 8-12 | 2.7 | 80 | 1.6 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T080120A6 | 8-12 | 2.3 | 60 | 1.6 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T120180A8 | 12-18 | 3.1 | 80 | 1.9 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T120180A6 | 12-18 | 2.5 | 60 | 1.9 | 0.2 | 50 | 90/60 | Absorptive | 3W1/3W2 |
| SP3T180260A6 | 18-26 | 5.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T180260A7 | 18-26 | 6.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T180260A8 | 18-26 | 8.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T180400A6 | 18-40 | 8(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T180400A7 | 18-40 | 9(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T180400A8 | 18-40 | 9.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T260400A6 | 26-40 | 8(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T260400A7 | 26-40 | 9(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T260400A8 | 26-40 | 9.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 90/60 | Absorptive | 3W3 |
| SP3T001005R8 | 0.1-0.5 | 1.3 | 80 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T001005R6 | 0.1-0.5 | 1.1 | 60 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T005020R8 | 0.5-2 | 1.5 | 80 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T005020R6 | 0.5-2 | 1.1 | 60 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T005180R8 | 0.5-18 | 3.1 | 80 | 2 | 0.2 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T005180R6 | 0.5-18 | 2.7 | 60 | 2 | 0.2 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T020040R8 | 2-4 | 1.5 | 80 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T020040R6 | 2-4 | 1.3 | 60 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T020180R8 | 2-18 | 3.1 | 80 | 2 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T020180R6 | 2-18 | 2.7 | 60 | 2 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T040080R8 | 4-8 | 1.9 | 80 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T040080R6 | 4-8 | 1.6 | 60 | 1.5 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T060180R5L | 6-18 | 4.5 | 50 | 2.1 | 0.5 | 50 | 90/60 | Reflective | 3W1 |
| SP3T080120R6 | 8-12 | 1.9 | 60 | 1.6 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T080120R8 | 8-12 | 2.3 | 80 | 1.6 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T120180R8 | 12-18 | 2.6 | 80 | 1.7 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP3T120180R6 | 12-18 | 2.1 | 60 | 1.7 | 0.5 | 50 | 90/60 | Reflective | 3W1/3W2 |
| SP4T | |||||||||
| SP4T020001A8 | 0.01-2 | 1.8 | 80 | 1.6 | 1 | 50 | 120/80 | Absorptive | 4W1 |
| SP4T060003A7 | 0.03-6 | 2.8 | 70 | 1.7 | 27dBm | 150 | 120/80 | Absorptive | 4W4 |
| SP4T005005A7 | 0.05-0.5 | 1.6 | 70 | 1.7 | 27dBm | 150 | 120/80 | Absorptive | 4W4 |
| SP4T001005A8 | 0.1-0.5 | 1.6 | 80 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T001005A6 | 0.1-0.5 | 1.3 | 60 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T004060A6C | 0.4-6 | 2.5 | 65 | 1.7 | 27dBm | 50 | 120/80 | Absorptive | 4W1 |
| SP4T004060A8C | 0.4-6 | 2.5 | 80 | 1.7 | 27dBm | 50 | 120/80 | Absorptive | 4W4 |
| SP4T004180A6C | 0.4-18 | 6 | 60 | 2.2 | 27dBm | 50 | 120/80 | Absorptive | 4W1 |
| SP4T004180A8C | 0.4-18 | 4.3 | 80 | 2.2 | 27dBm | 50 | 120/80 | Absorptive | 4W14 |
| SP4T005020A8 | 0.5-2 | 1.8 | 80 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T005020A6 | 0.5-2 | 1.5 | 60 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T005180A8 | 0.5-18 | 3.8 | 80 | 2.2 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T005180A6 | 0.5-18 | 3.5 | 60 | 2.2 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T005400A7 | 0.5-40 | 9.2 | 75 | 2.5 | 0.2 | 50 | 120/80 | Absorptive | 4W10 |
| SP4T005400A8 | 0.5-40 | 10.2 | 75 | 2.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1 |
| SP4T010180A4 | 1-18 | 3.6 | 40 | 1.8/2.2 | 0.2 | 200 | 120/80 | Absorptive | 4W2 |
| SP4T010180A6 | 1-18 | 3.8 | 60 | 1.8/2.2 | 0.2 | 200 | 120/80 | Absorptive | 4W2 |
| SP4T010400A6 | 1-40 | 9.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T010400A7 | 1-40 | 11(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T010400A8 | 1-40 | 12.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T018060A8 | 1.8-6 | 2 | 80 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1 |
| SP4T020040A8 | 2-4 | 1.9 | 80 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T020040A6 | 2-4 | 1.7 | 60 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T020180A8 | 2-18 | 3.8 | 80 | 2 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T020180A6 | 2-18 | 3.5 | 60 | 2 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T040080A6 | 4-8 | 2.3 | 80 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T040080A6 | 4-8 | 2 | 60 | 1.5 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T080120A8 | 8-12 | 2.9 | 80 | 1.7 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T080120A6 | 8-12 | 2.5 | 60 | 1.7 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T120180A8 | 12-18 | 3.6 | 80 | 1.7 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T120180A6 | 12-18 | 3.3 | 60 | 1.7 | 0.2 | 50 | 120/80 | Absorptive | 4W1/4W2 |
| SP4T180260A6 | 18-26 | 6(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T180260A7 | 18-26 | 7(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T180260A8 | 18-26 | 9(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T180400A6 | 18-40 | 8.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T180400A7 | 18-40 | 9.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T180400A8 | 18-40 | 10(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T260400A6 | 26-40 | 7.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T260400A7 | 26-40 | 9(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T260400A8 | 26-40 | 10(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 120/80 | Absorptive | 4W15 |
| SP4T340360A7 | 34-36 | 6 | 70 | 2.2 | 250mW | 50 | 120/80 | Absorptive | 4W5 |
| SP4T340360A8 | 34-36 | 8 | 75 | 2.2 | 250mW | 50 | 120/80 | Absorptive | 4W7 |
| SP4T001005R8 | 0.1-0.5 | 1.2 | 80 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T001005R6 | 0.1-0.5 | 1 | 60 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T005020R8 | 0.5-2 | 1.5 | 80 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T005020R6 | 0.5-2 | 1.3 | 60 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T005180R8 | 0.5-18 | 3.3 | 80 | 2 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T005180R6 | 0.5-18 | 3.1 | 60 | 2 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T005200R6 | 0.5-20 | 4 | 60 | 2 | 20dBm | 150 | 60/60 | Reflective | 4W1 |
| SP4T020040R8 | 2-4 | 1.7 | 80 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T020040R6 | 2-4 | 1.4 | 60 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T020180R8 | 2-18 | 3.3 | 80 | 2 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T020180R6 | 2-18 | 3.1 | 60 | 2 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T040080R8 | 4-8 | 1.9 | 80 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T040080R6 | 4-8 | 1.6 | 60 | 1.5 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T080120R8 | 8-12 | 2.7 | 80 | 1.6 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T080120R6 | 8-12 | 2.2 | 60 | 1.6 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T120180R8 | 12-18 | 3.1 | 80 | 1.6 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP4T120180R6 | 12-18 | 2.5 | 60 | 1.6 | 0.5 | 50 | 120/80 | Reflective | 4W1/4W2 |
| SP5T | |||||||||
| SP5T001005A8 | 0.1-0.5 | 1.5 | 80 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T001005A6 | 0.1-0.5 | 1.3 | 60 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T005020A8 | 0.5-2 | 2.2 | 80 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T005020A6 | 0.5-2 | 2 | 60 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T005180A8 | 0.5-18 | 4 | 80 | 2.2 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T005180A6 | 0.5-18 | 3.8 | 60 | 2.2 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T010180A4 | 1-18 | 3.8 | 40 | 1.8/2.2 | 0.2 | 200 | 110/50 | Absorptive | 5W2 |
| SP5T010400A6 | 1-40 | 10(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T010400A7 | 1-40 | 11.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T010400A8 | 1-40 | 13.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T020040A8 | 2-4 | 2.5 | 80 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T020040A6 | 2-4 | 1.8 | 60 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T020180A8 | 2-18 | 4 | 80 | 2 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T020180A6 | 2-18 | 3.8 | 60 | 2 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T040080A8 | 4-8 | 2.5 | 80 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T040080A6 | 4-8 | 2.2 | 60 | 1.5 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T080120A8 | 8-12 | 3.1 | 80 | 1.7 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T080120A6 | 8-12 | 2.7 | 60 | 1.7 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T120180A8 | 12-18 | 3.7 | 80 | 1.7 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T120180A6 | 12-18 | 3.1 | 60 | 1.7 | 0.2 | 50 | 150/100 | Absorptive | 5W1/5W2 |
| SP5T180260A6 | 18-26 | 6.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T180260A7 | 18-26 | 7.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T180260A8 | 18-26 | 10(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T180400A6 | 18-40 | 9(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T180400A7 | 18-40 | 10(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T180400A8 | 18-40 | 11(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T260400A6 | 26-40 | 8(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T260400A7 | 26-40 | 9.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T260400A8 | 26-40 | 11(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 150/100 | Absorptive | 5W4 |
| SP5T001005R8 | 0.1-0.5 | 1.2 | 80 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T001005R6 | 0.1-0.5 | 1 | 60 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T005020R8 | 0.5-2 | 1.5 | 80 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T005020R6 | 0.5-2 | 1.3 | 60 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T005180R8 | 0.5-18 | 3.7 | 80 | 2.2 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T005180R6 | 0.5-18 | 3.3 | 60 | 2.2 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T020040R8 | 2-4 | 1.7 | 80 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T020040R6 | 2-4 | 1.5 | 60 | 1.5 | 0.2 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T020180R8 | 2-18 | 3.7 | 80 | 2 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T020180R6 | 2-18 | 3.3 | 60 | 2 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T040080R8 | 4-8 | 2.1 | 80 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T080120R8 | 8-12 | 2.7 | 80 | 1.7 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T040080R6 | 4-8 | 1.8 | 60 | 1.5 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T080120R6 | 8-12 | 2.4 | 60 | 1.7 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T120180R8 | 12-18 | 3.3 | 80 | 1.7 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP5T120180R6 | 12-18 | 3 | 60 | 1.7 | 0.5 | 50 | 150/100 | Reflective | 5W1/5W2 |
| SP6T | |||||||||
| SP6T060003A7 | 0.03-6 | 3.2 | 70 | 2 | 27dBm | 150 | 180/120 | Absorptive | 6W3 |
| SP6T005005A7 | 0.05-0.5 | 2 | 70 | 1.8 | 27dBm | 150 | 180/120 | Absorptive | 6W3 |
| SP6T001005A8 | 0.1-0.5 | 1.7 | 80 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T001005A6 | 0.1-0.5 | 1.5 | 60 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T004060A6C | 0.4-6 | 3.5 | 65 | 1.8 | 27dBm | 50 | 180/120 | Absorptive | 6W1 |
| SP6T004060A8C | 0.4-6 | 3 | 80 | 1.7 | 27dBm | 50 | 180/120 | Absorptive | 6W3 |
| SP6T004180A6C | 0.4-18 | 5 | 60 | 2.2 | 27dBm | 50 | 180/120 | Absorptive | 6W1 |
| SP6T004180A8C | 0.4-18 | 5 | 80 | 2.2 | 27dBm | 50 | 180/120 | Absorptive | 6W3 |
| SP6T005020A8 | 0.5-2 | 2.5 | 80 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T005020A6 | 0.5-2 | 2 | 60 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T005180A8 | 0.5-18 | 4.3 | 80 | 2.2 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T005180A6 | 0.5-18 | 4 | 60 | 2.2 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T010400A6 | 1-40 | 10.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T010400A7 | 1-40 | 12(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T010400A8 | 1-40 | 13.5(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T020040A8 | 2-4 | 2.1 | 80 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T020040A6 | 2-4 | 1.9 | 60 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T020180A8 | 2-18 | 4.3 | 80 | 2 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T020180A6 | 2-18 | 4 | 60 | 2 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T040080A8 | 4-8 | 2.5 | 80 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T040080A6 | 4-8 | 2.2 | 60 | 1.5 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T060180A7 | 6-18 | 5.5 | 70 | 2.2 | 0.5 | 50 | 180/120 | Absorptive | 6W8 |
| SP6T080120A8 | 8-12 | 3.3 | 80 | 1.7 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T080120A6 | 8-12 | 2.9 | 60 | 1.7 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T120180A8 | 12-18 | 3.9 | 80 | 1.7 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T120180A6 | 12-18 | 3.5 | 60 | 1.7 | 0.2 | 50 | 180/120 | Absorptive | 6W1/6W2 |
| SP6T180260A6 | 18-26 | 7(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T180260A7 | 18-26 | 8(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T180260A8 | 18-26 | 10(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T180400A6 | 18-40 | 9.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T180400A7 | 18-40 | 10.5(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T180400A8 | 18-40 | 11(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T260400A6 | 26-40 | 8.5(Typ.) | 60 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T1260400A7 | 26-40 | 10(Typ.) | 70 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T260400A8 | 26-40 | 11(Typ.) | 80 | 2.5 | 0.2 | 120(Typ.) | 180/120 | Absorptive | 6W9 |
| SP6T340360A7 | 34-36 | 6.8 | 70 | 2.2 | 250mW | 50 | 180/120 | Absorptive | 6W4 |
| SP6T340360A8 | 34-36 | 7.8 | 75 | 2.2 | 250mW | 50 | 180/120 | Absorptive | 6W5 |
Note:Miniture size,drop-in ,customized specification is also available
Related Search
Signal Switch
Pin Switch
Turn Signal Switch
Car Turn Signal Switch
Auto Turn Signal Switch
Pin
More>>
Find more related products in following catalogs on Hisupplier.com
Related Products
Company Info
Shen yang qian Chi technology co., ltd [China (Mainland)]
Business Type:Manufacturer, Service
City: Shenyang
Province/State: Liaoning
Country/Region: China (Mainland)
